90° Horizontal Bend
Widths 50–1200 mm · finish matched to tray
Fittings & accessories
One order covers the whole run

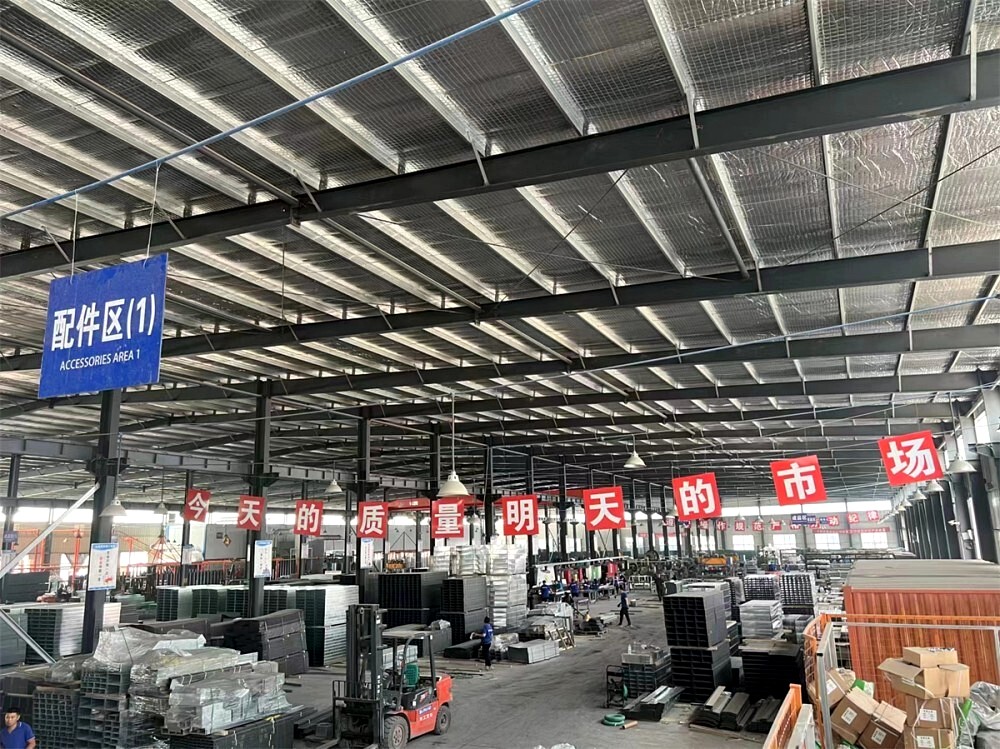

Projects stall when fittings come from a different supplier than the trays. Ours are folded, welded and finished in the same factory — the accessories area of our workshop is dedicated to exactly this.
Horizontal Tee
Equal & reducing · widths 50–1200 mm
Horizontal Cross
Four-way branch · widths 50–1200 mm
Reducer
Straight, offset & reducing · custom sizes
Tray Cover
Solid / vented · formed to tray width
Splice Bolts & Nuts
Supplied with coupler plates · matched finish
Support hardware
| Strut / C-channel | Support channel for trapeze and wall mounting, with catalog safe-load tables |
|---|---|
| Threaded rods | DIN 975, M6–M12, lengths 500–3000 mm |
| Anchors | Anchor bolts with published safe tensile values (e.g. GD M12 at 5.0 kN safe pull) |
| Hangers & brackets | Wall brackets, trapeze kits, riser clamps and cover clamps |
How fittings are supplied
- Same steel grade and finish as the straights — no colour or coating mismatch
- Counted against your BOQ and packed labelled by type
- Splice plates and bolts included per joint — not sold back to you as extras
- Custom angles, radii and reducing sizes made to drawing
Get a factory price
Request a Quote
Send your BOQ or drawings — Jason replies personally with a priced offer.
