Perforated Cable Tray
Ventilated trough tray for power and control cables. Widths 50–1200 mm, finishes from pre-galvanized to hot-dip galvanized and stainless.
View specifications
Hongfeng · Cable Tray Manufacturer
Cable tray systems, made in our factory — priced from your BOQ.
Perforated tray, cable ladder, wire mesh tray and trunking with the full fittings and support kit, manufactured in Liaocheng, Shandong and exported worldwide. Send your drawings or BOQ and get a factory price from Jason personally.
- Widths 50–1200 mm · thickness 0.5–3.0 mm
- Hot-dip galvanized, stainless 304/316, aluminum, powder coated
- OEM / ODM and custom sizes

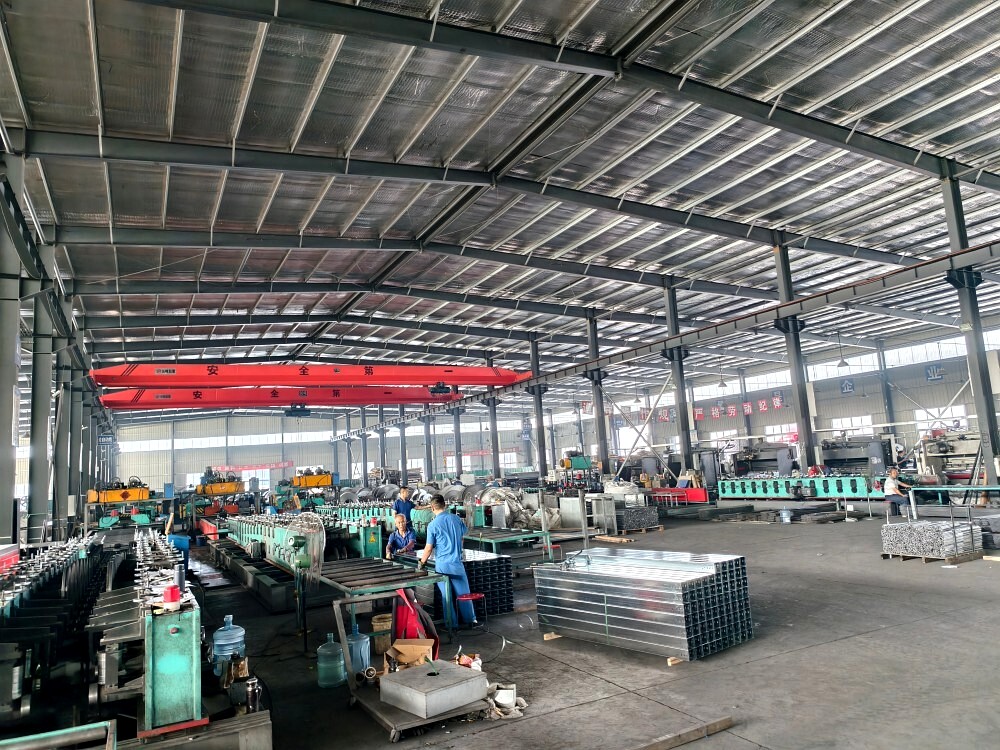

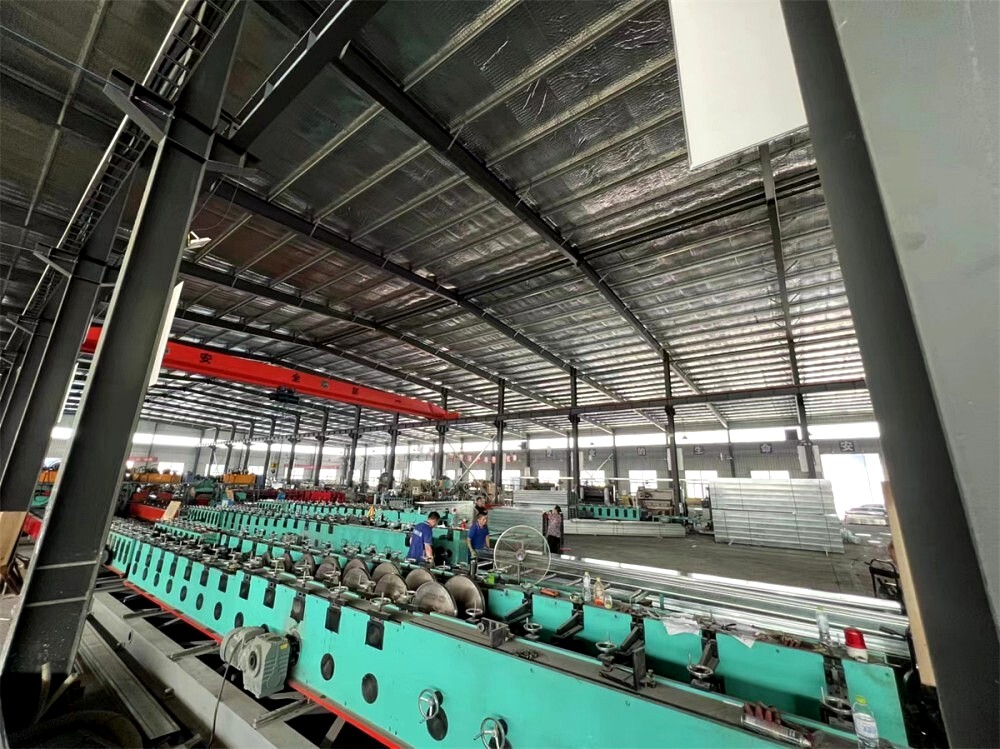

Inside our Liaocheng factory — forming lines and finished tray stock.
Product range
Four tray systems, one factory
Every system is produced on our own lines and supplied with its matching bends, tees, covers, splice plates and supports.
Cable Ladder
Two side rails with rungs for heavy cable runs and long spans. Load charts per DIN EN IEC 61537 in our catalog.
View specifications
Wire Mesh Cable Tray
Basket tray with wire diameter 3.5–6.0 mm, Fastfix quick connectors and field-made bends, tees and reducers.
View specifications
Cable Trunking
Fully enclosed solid-bottom trunking that shields sensitive control and communication cables from interference and dust.
View specificationsInteractive
Explore the complete system
A cable tray run is more than straight lengths. Tap a numbered part to see how the system fits together — then quote the whole run in one inquiry.
Manufacturing
From steel coil to loaded container
Step 1

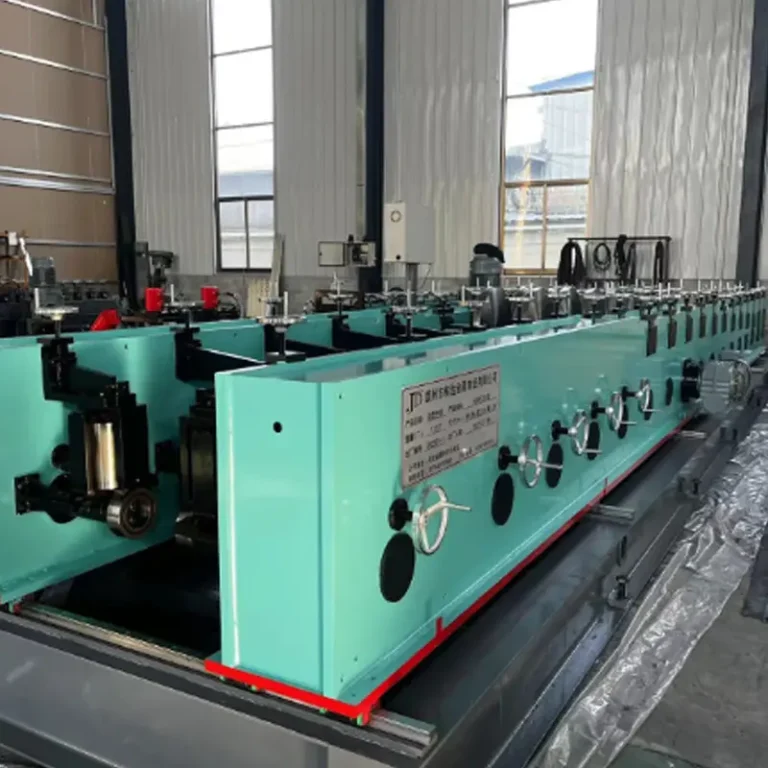

Punching & Roll Forming
Coils are punched and roll-formed on our own automatic lines — profiles stay consistent across a whole project.
Step 2

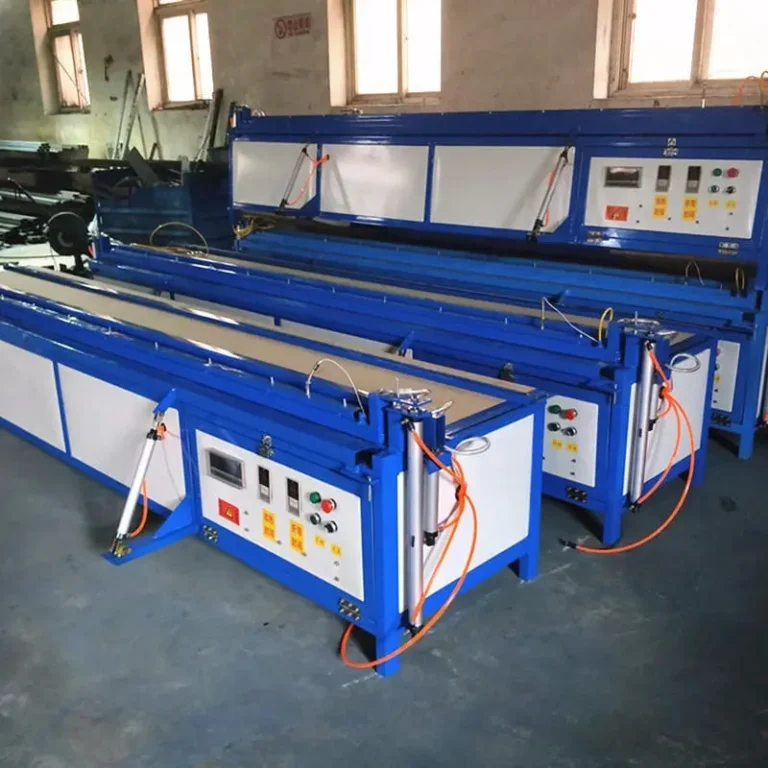

Bending & Welding
Fittings are folded and welded in-house, so bends and tees match the straights in size and finish.
Step 3

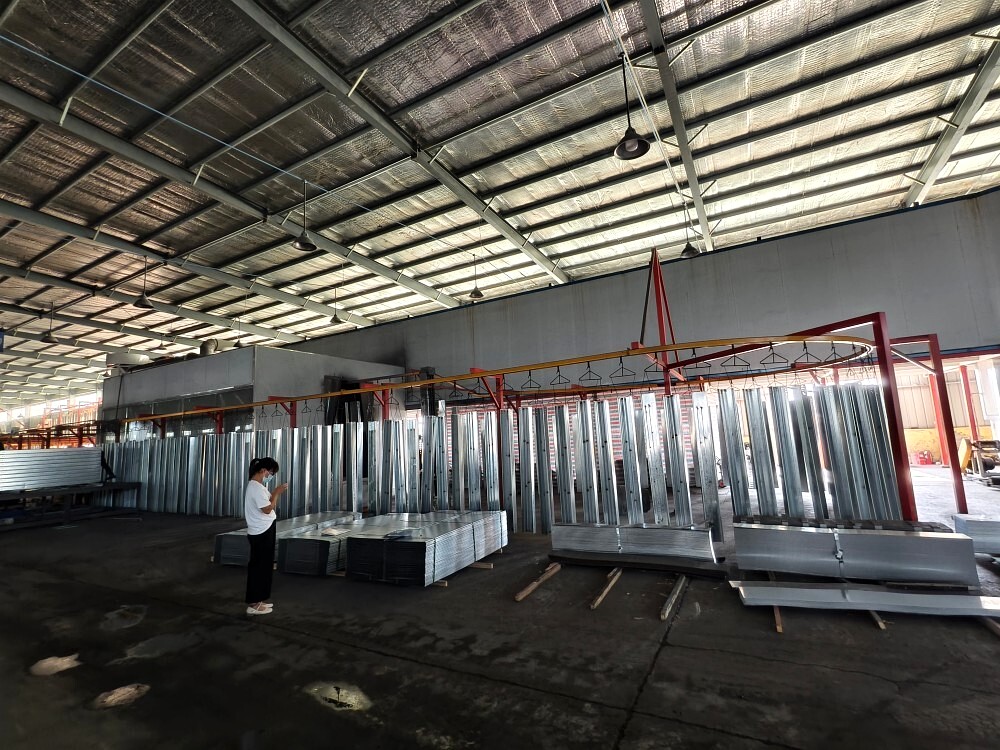

Surface Treatment
Pre-galvanized, hot-dip galvanized, powder coated or stainless — the finish is applied and checked before packing.
Step 4
Inspection, Packing & Dispatch
Sizes and finishes are checked piece by piece, then bundled, wrapped and palletised for export.
Fittings & accessories
Every fitting, matched to your tray
Fittings are made from the same steel and finish as your straights — supplied counted, packed, and ready to install.

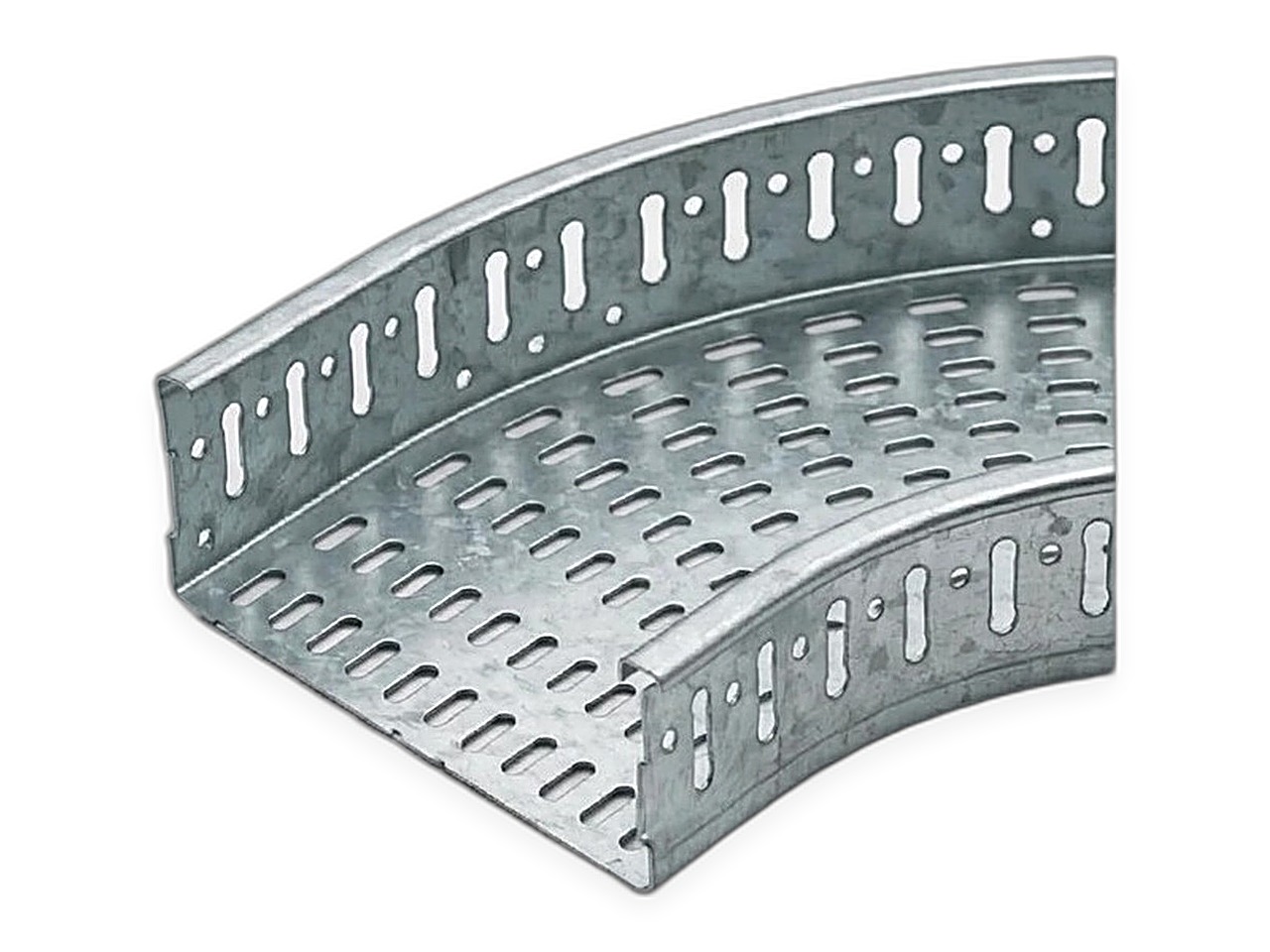

90° Horizontal Bend
Widths 50–1200 mm · finish matched to tray

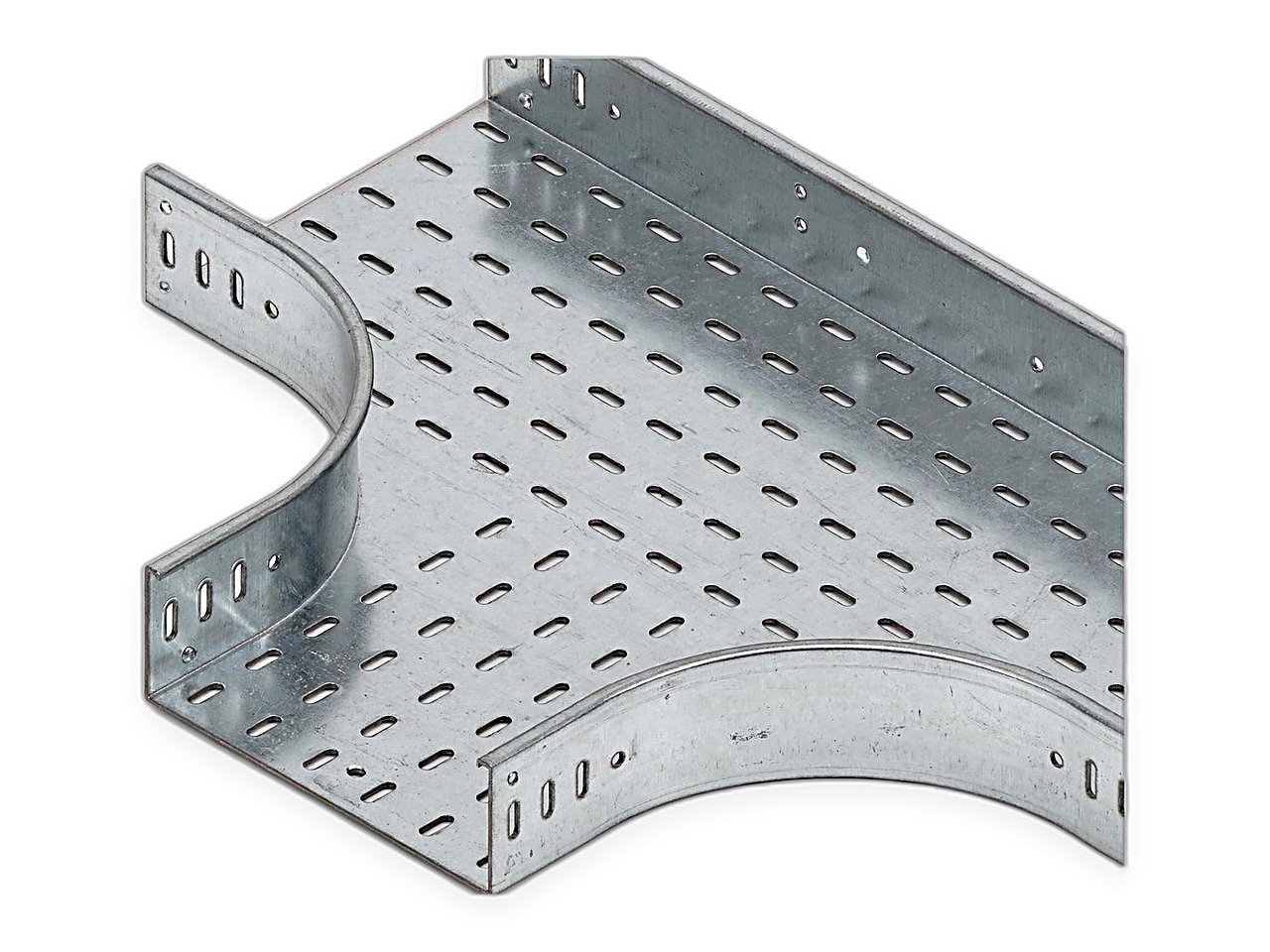

Horizontal Tee
Equal & reducing · widths 50–1200 mm

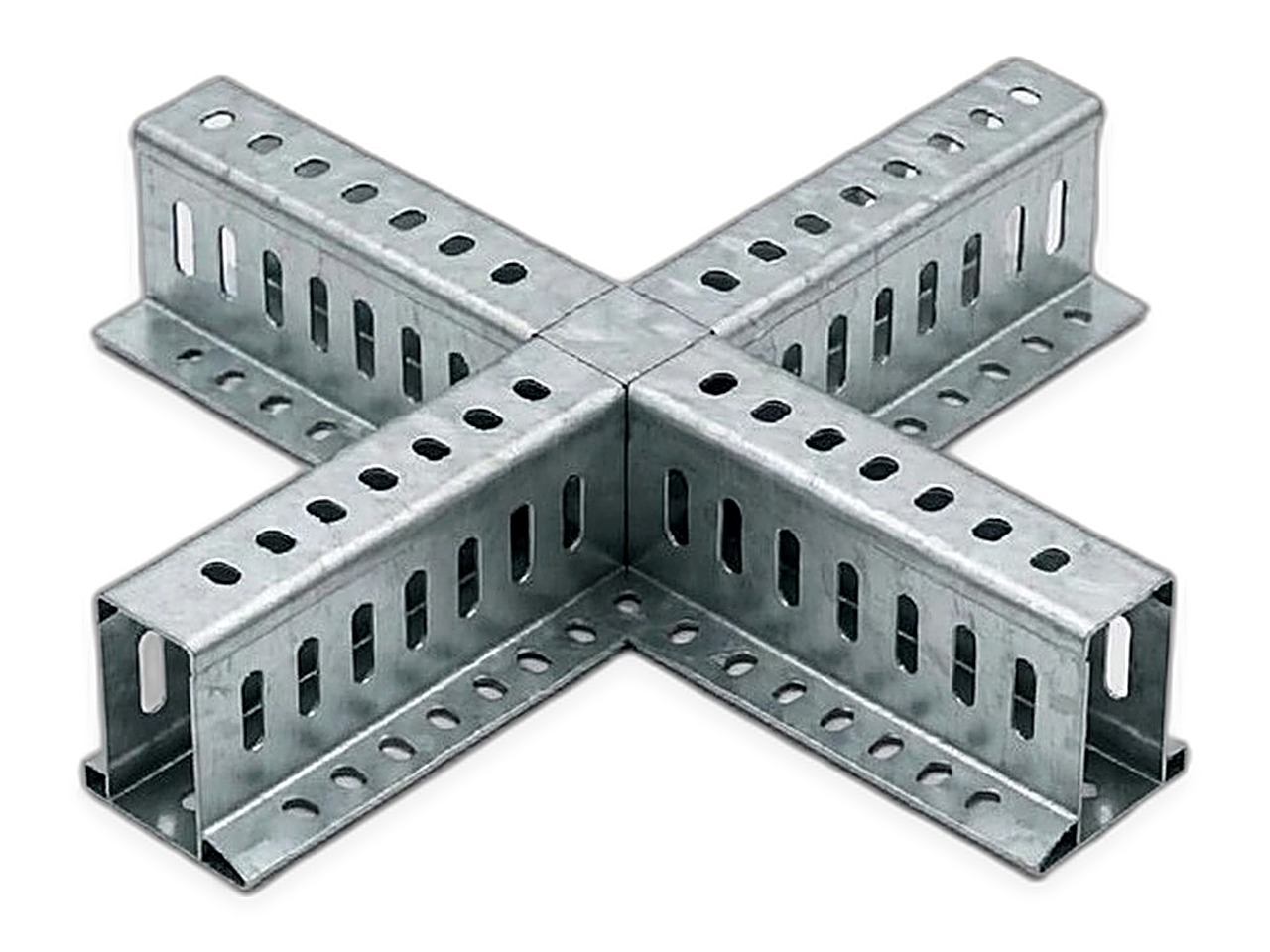

Horizontal Cross
Four-way branch · widths 50–1200 mm

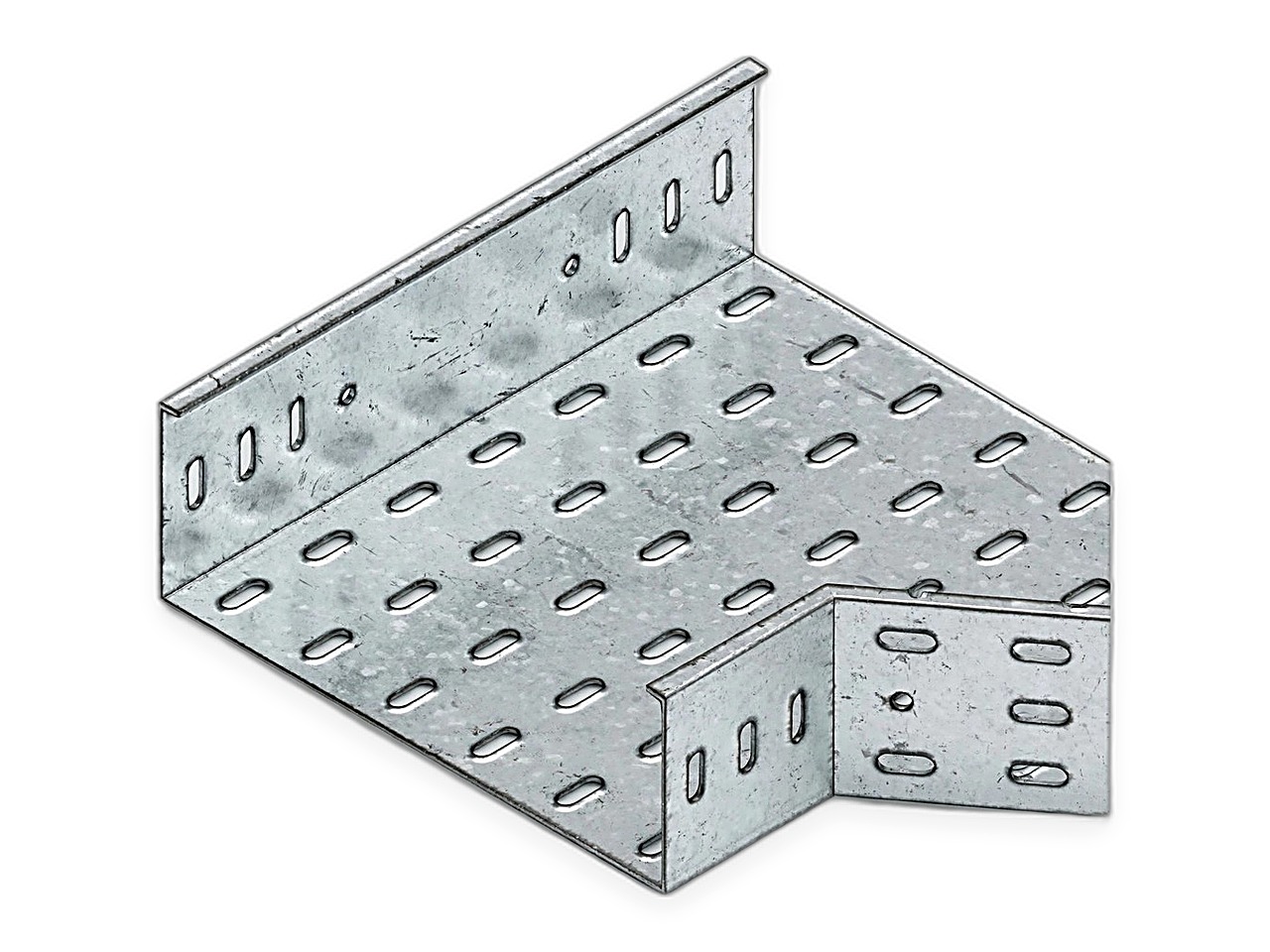

Reducer
Straight, offset & reducing · custom sizes

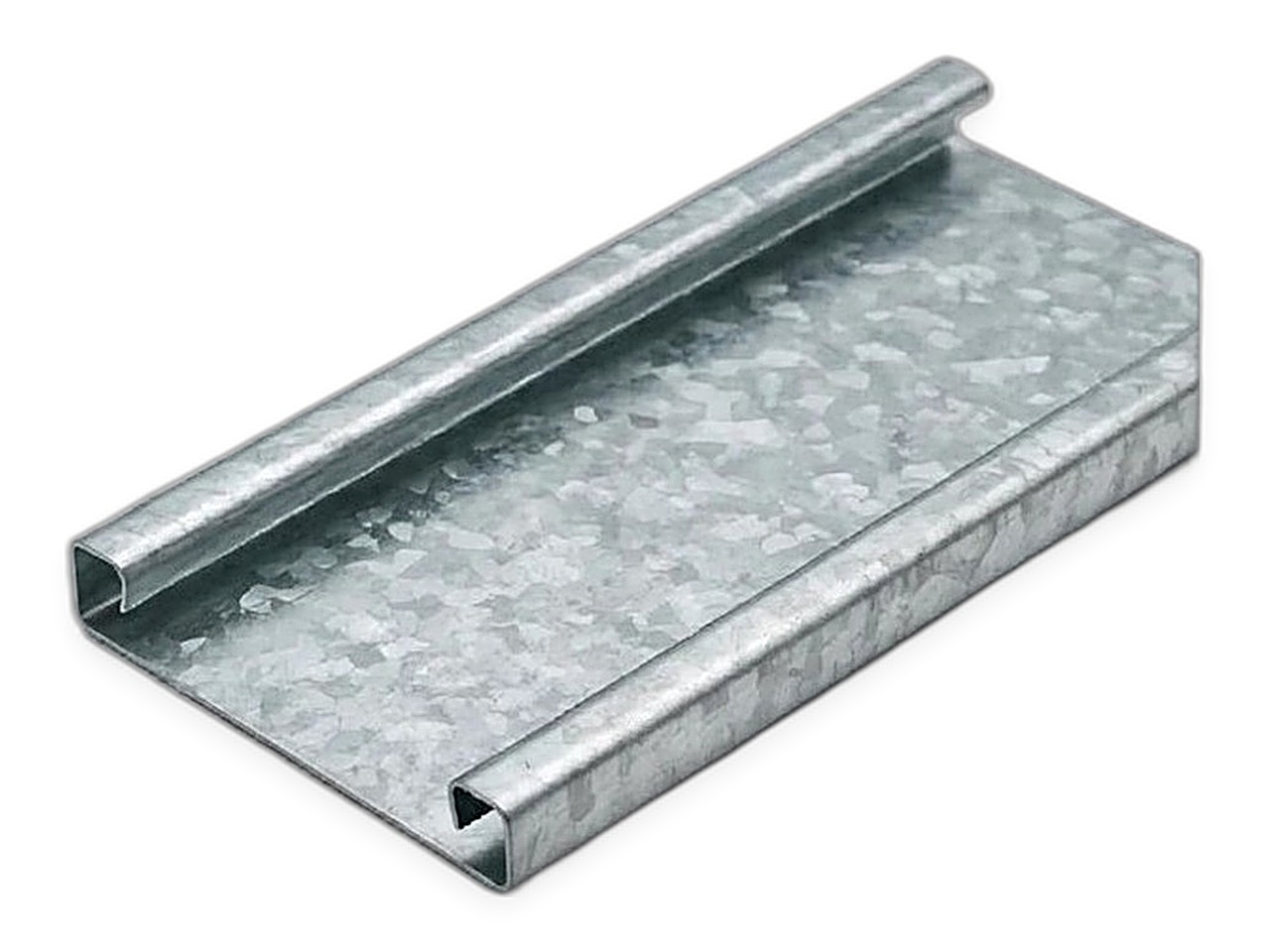

Tray Cover
Solid / vented · formed to tray width

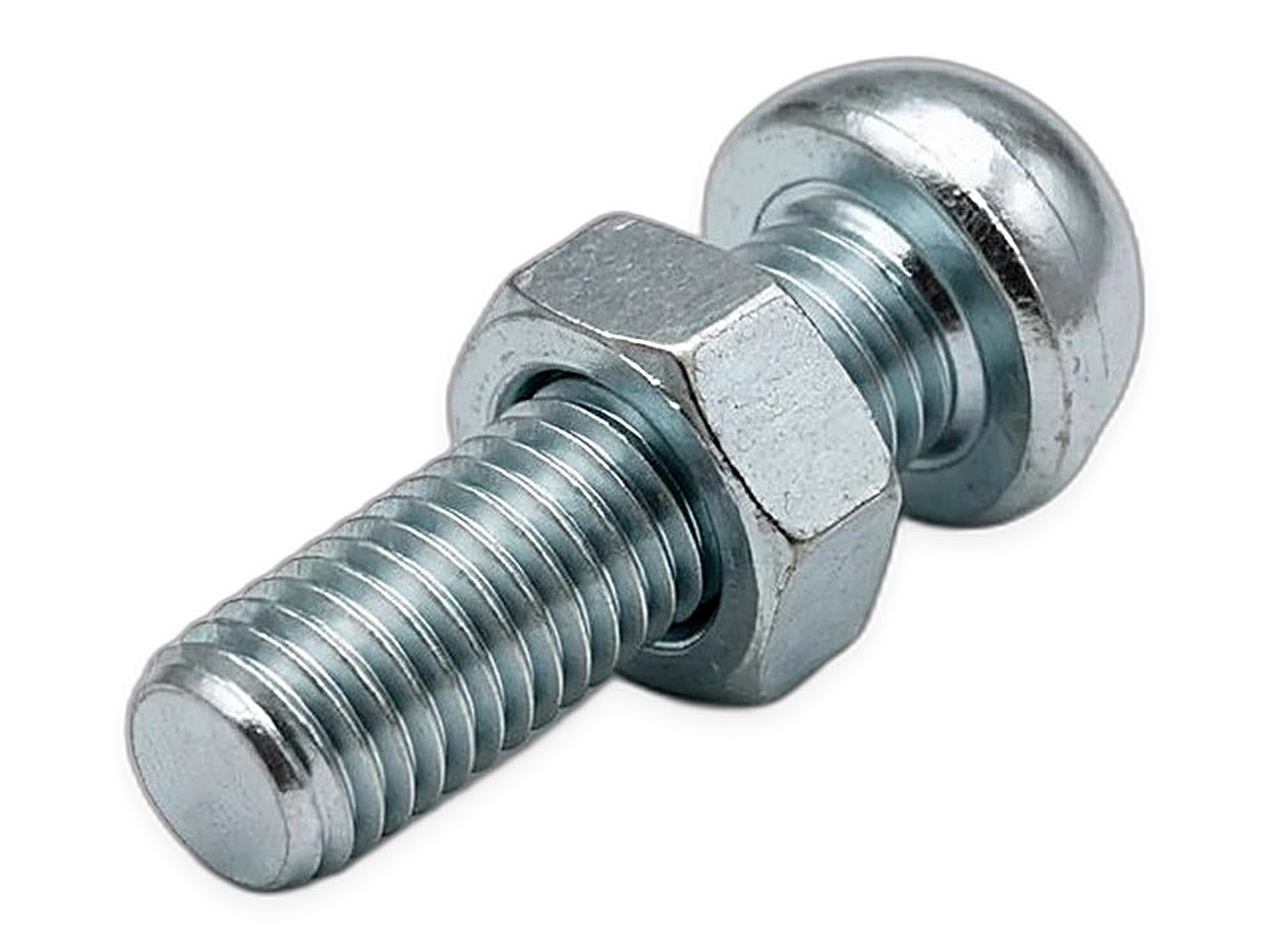

Splice Bolts & Nuts
Supplied with coupler plates · matched finish
Factory visits
Buyers at our factory
Buyers in our sample room
Overseas buyers visit our sample room to walk the full tray system on display — straights, bends, tees and support hardware — and check finishes and fittings with our export team before they commit to an order.
Drawings & samples, checked together
Specification reviews at our office — your drawings and BOQ checked line by line against physical samples and fittings before anything is quoted.
Meet the team behind your order
The same people who quote your project follow it through production, packing and loading — one contact from first drawing to final container.
Packing & dispatch

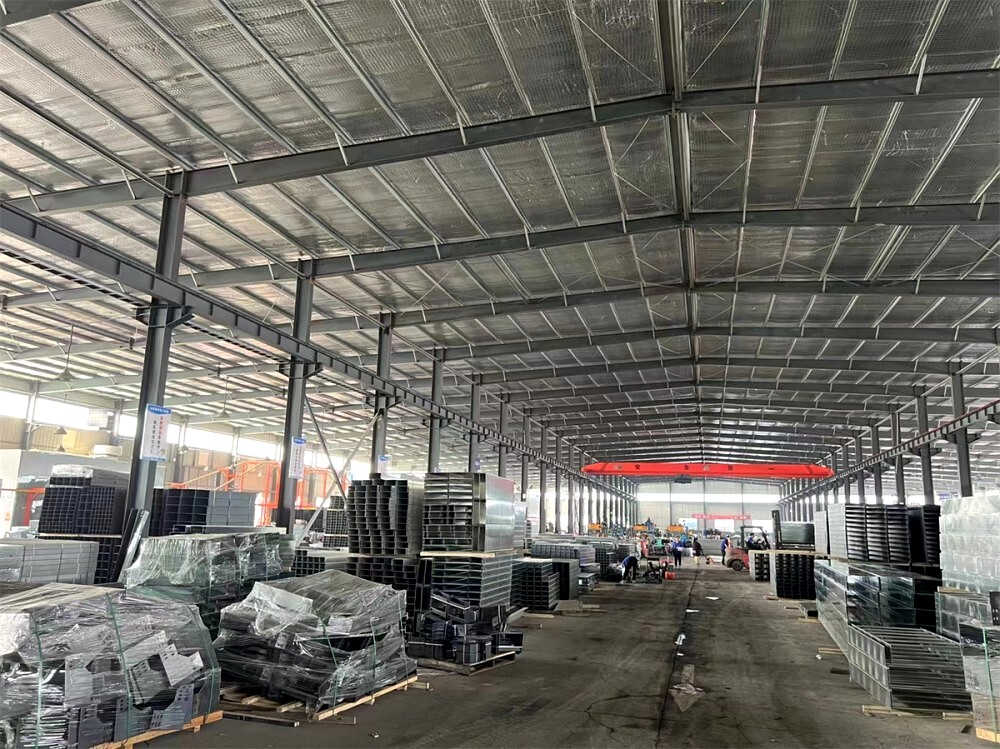

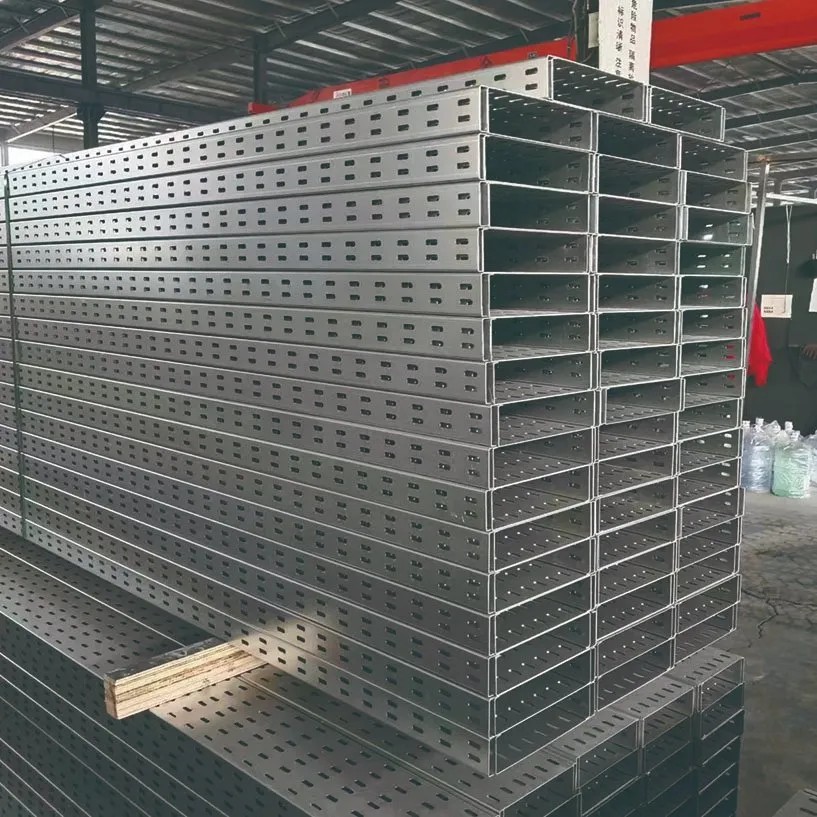

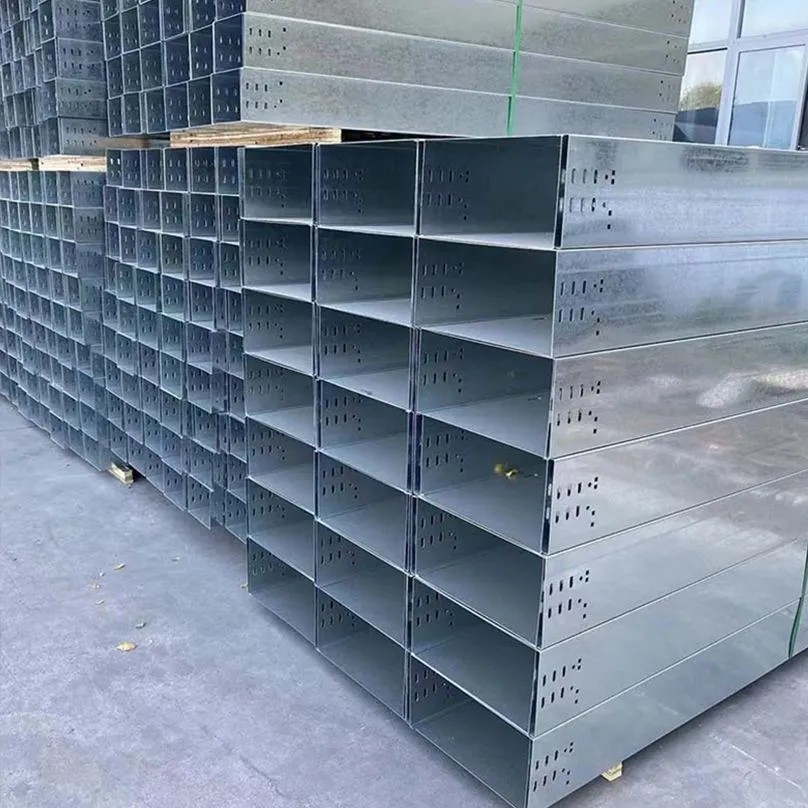

Finished & ready to ship

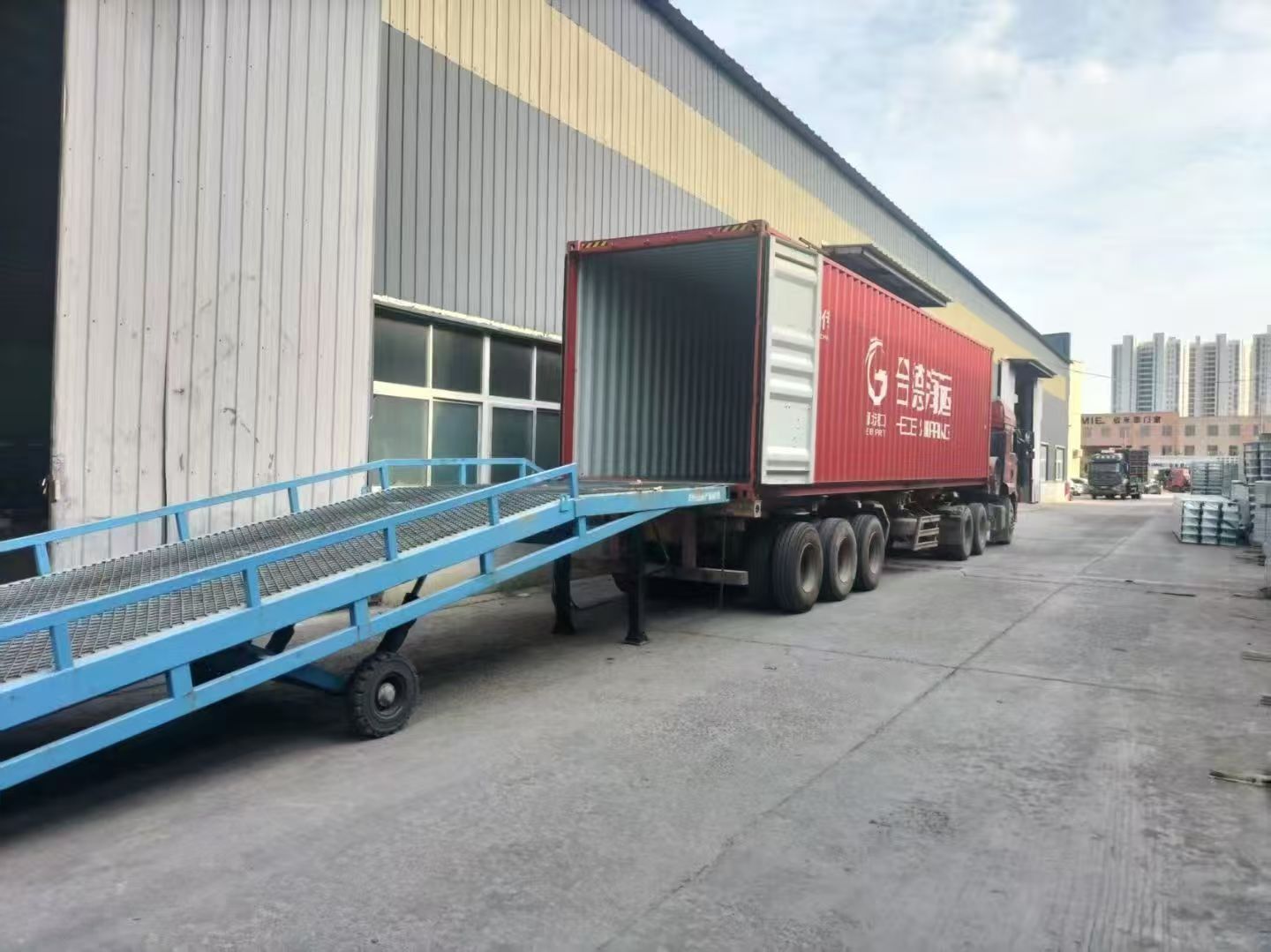

Container loading at our factory
Containers are loaded at our own dock with a mobile ramp — no third-party warehouse handling.

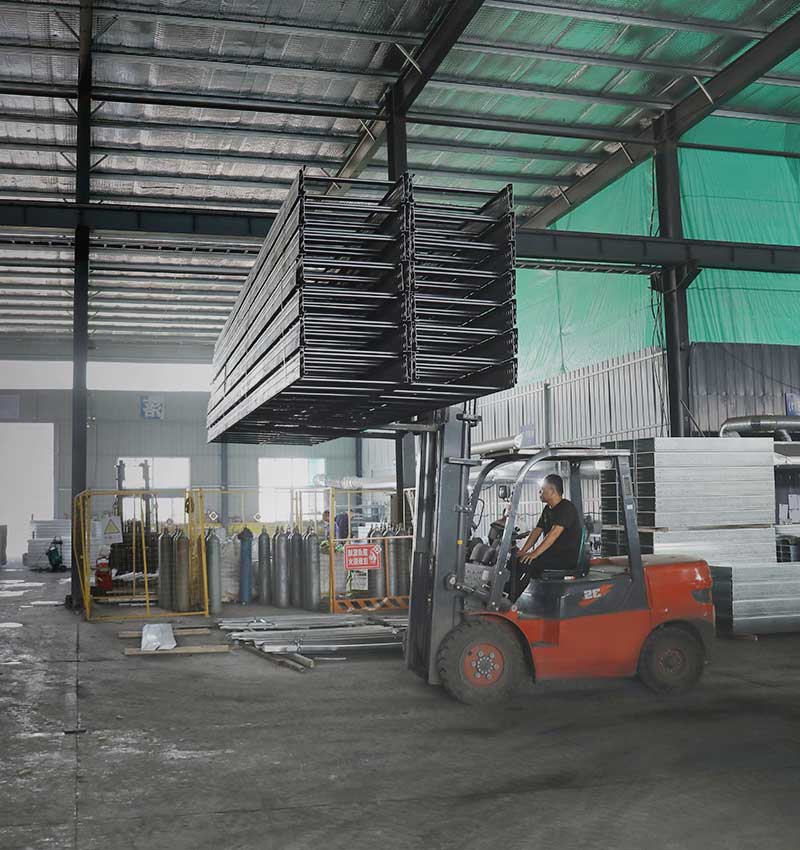

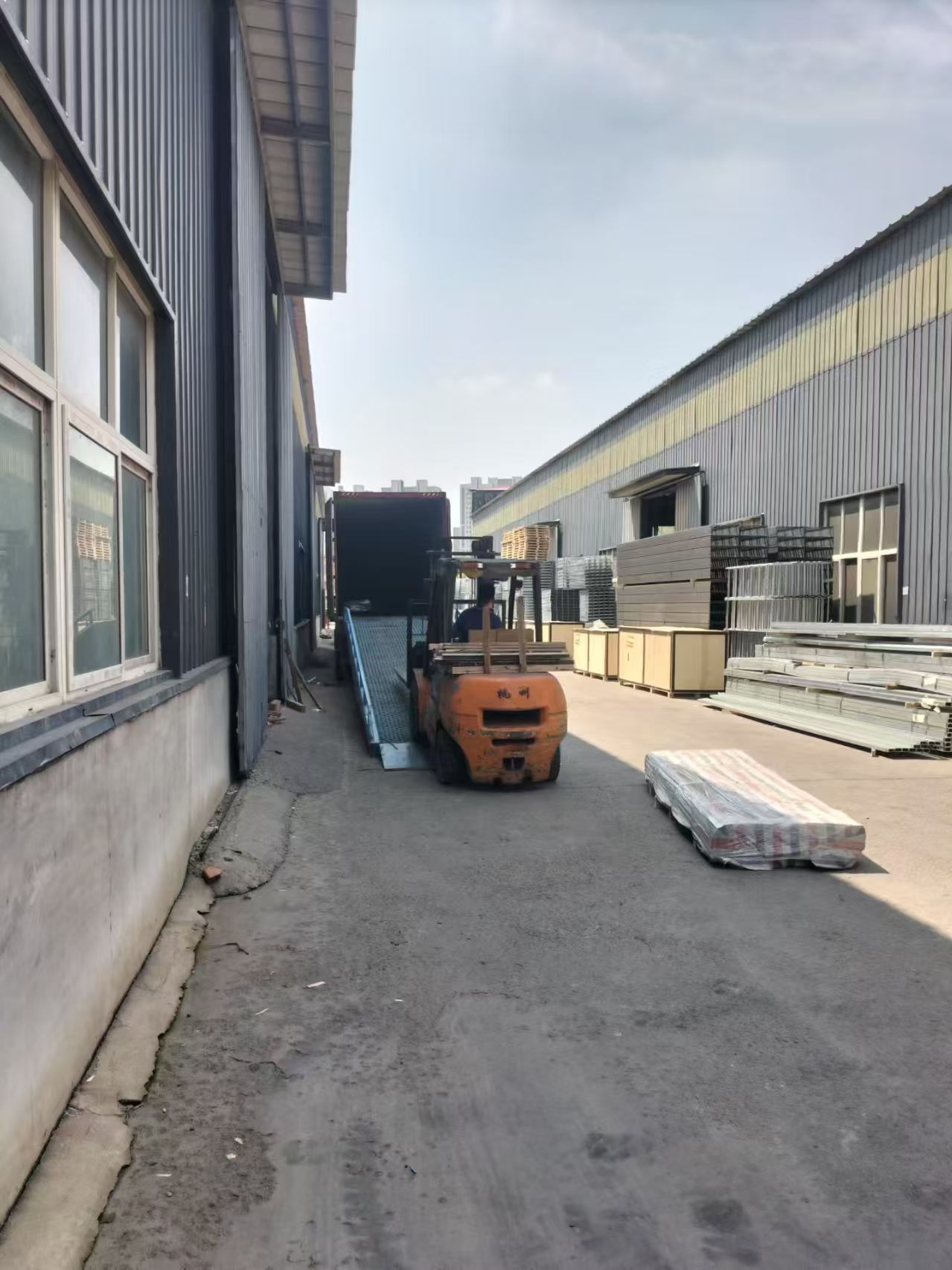

Forklift loading, export packing
Bundles are wrapped, strapped and palletised for export, then loaded piece-counted against the packing list.

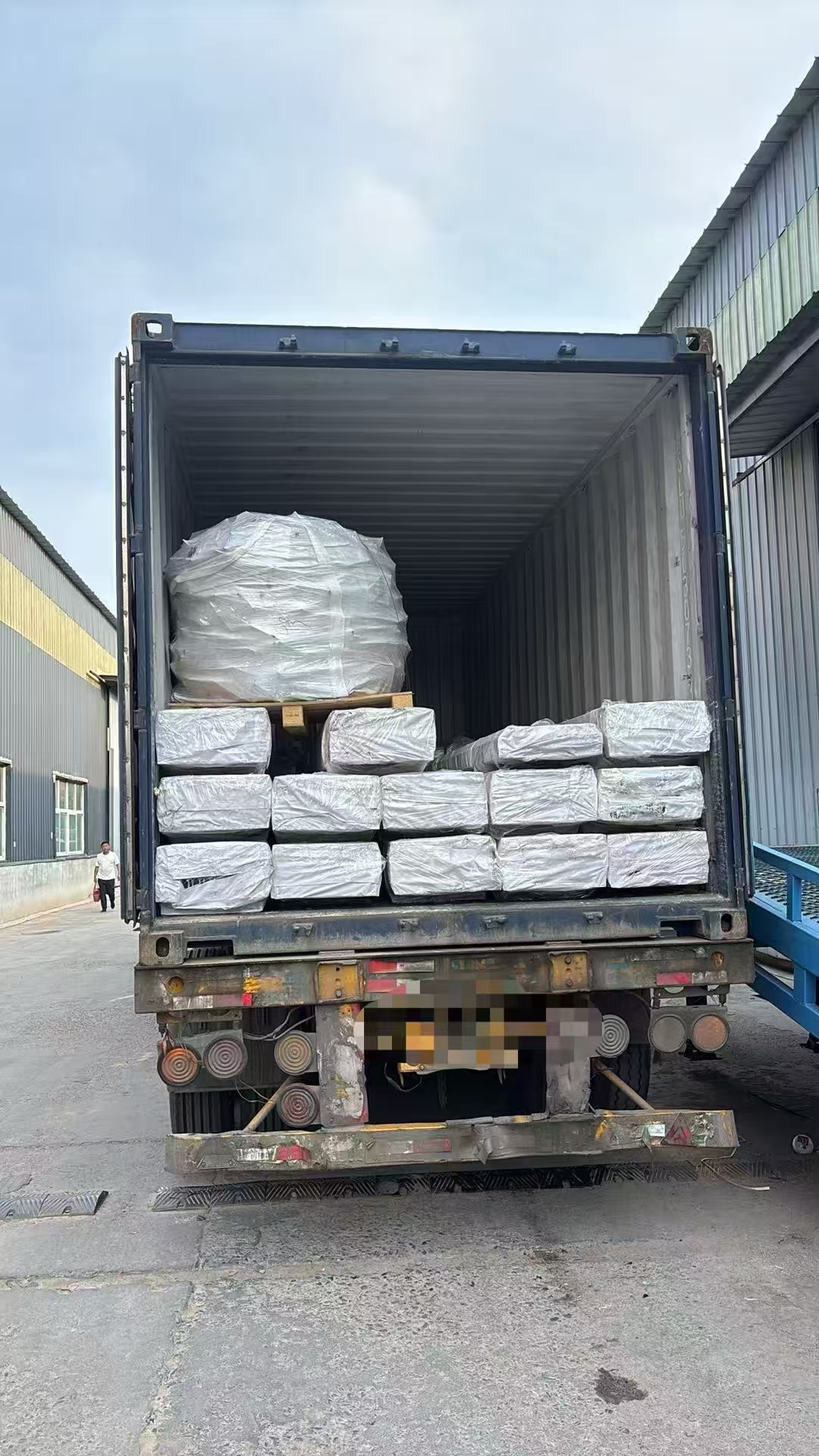

Loaded and ready to seal
A full container of cable tray, packed tight and photographed before sealing — photos are shared with the buyer.
Project references
Supplied to projects in three regions
Saudi Arabia — Power Engineering Project
Cable trays and fittings supplied for a power engineering project in Saudi Arabia, delivered alongside Shandong Electric Power Company.
Singapore — Data Center
Cable tray supply for a data center (computing facility) project in Singapore, where clean routing and reliable finishes matter most.
USA — Shopping Mall Power Distribution
Cable tray systems supplied for the power distribution of a shopping mall project in the United States.
Project narratives as provided by our sales records; client names and figures are shared in direct discussion where the client permits.
Quality & documents
Documents you can verify
We cite our certificates precisely — by issuer, standard and number — so your compliance team can check them:
- UDEM Attestation of Conformity to the Low Voltage Directive 2014/35/EU, EN 61537:2007 — cable tray model HF01A, certificate No. M.2023.206.C88198
- Sample type-test reports to JB/T 10216-2013 for supplied tray samples
- ISO 9001 / ISO 14001 / ISO 45001 management-system certificates (copies on the Certificates page)
Get a factory price
Request a Quote
Send your BOQ or drawings — Jason replies personally with a priced offer.
